Injection mold manufacturing from approved concept to trial.
Project-managed mold design, machining, fitting, assembly and trial correction for custom plastic components.

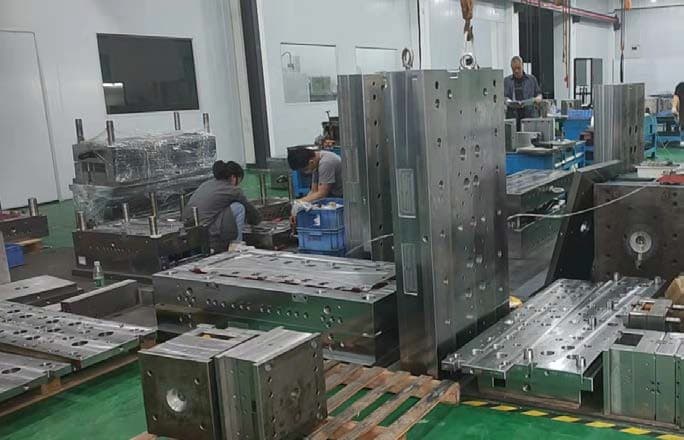

Real partner-factory materialSteel and mold construction follow the application.
Common tooling materials shown in the partner-factory material include P20, 718H, S136 and NAK80. Final selection depends on resin, expected volume, surface finish, corrosion exposure, maintenance plan and buyer requirements.
- Mold-base and insert strategy
- Hot or cold runner requirements
- Slides, lifters and ejection
- Cooling and service access
CNC, EDM and wire cutting are complementary processes.
CNC establishes the principal geometry; EDM resolves deep or inaccessible details; wire cutting supports precision profiles and inserts. Polishing and bench fitting then bring surfaces and moving components into the assembled tool.
- Rough and finish CNC
- EDM for deep details
- Wire cutting for profiles
- Polishing and texture preparation
Validate the tool as a working production system.
After assembly, the mold is trialed with agreed process conditions. Samples are reviewed for fill, flash, short shots, deformation, ejection, appearance and dimensions before corrections or approval.
Send the part. Start with an engineering conversation.
Share CAD, drawings or a project description. The tooling team will confirm what is needed for a useful review and quotation.
